#3001093 330-350-540 Regulator
$320.95
Harris 330-350-540
- Description
- Additional information
Description
Harris 330-350-540 Liquid Oxygen #3001093
Description: Single Stage Liquid Cylinder Gaseous Withdrawal Regulator
The Model 330 regulator allows for gaseous withdrawal from oxygen, carbon dioxide, argon and/or nitrogen liquid cylinders. It has a stainless steel diaphragm and a tamper-proof, self-reseating, internal HP safety valve. Its unique design permits inlet pressures of up to 3000 PSIG for use on high pressure cylinders.
Specifications:
- Part Number: 3001093
- Max Inlet Pressure: 3000 PSIG
- Delivery Pressure Range: 0-350 PSIG
- Delivery Pressure Gauge: 500 PSIG
Features:
- Designed specifically to operate on liquid cylinders, but can be used on high pressure cylinders without damage
- 2 3/4″ stainless steel diaphragm
- 7-Year Warranty
- Made in the USA
- Capacity: Heavy Duty
- Cv: 0.37
- Gauges: 2″ Brass
- Pressure Regulation: 0.2 PSIG/100 PSIG
- Seat: One-piece encapsulated seat design with internal filter and a PTFE Teflon® seat
- Certifications: UL® listed/CGA E-4
- Weight: 4.3 lbs. / 1.95 kg.

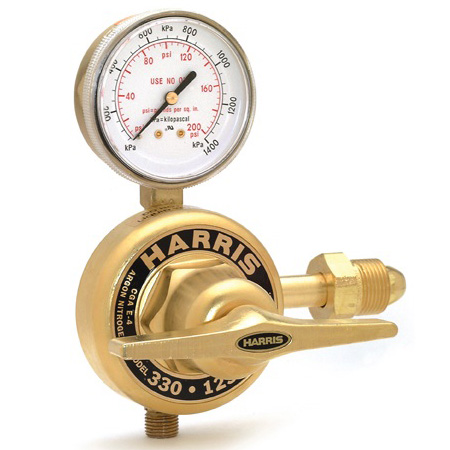

Image for reference only, item may very.
Made in the USA!
7 Year Manufacture Warranty
